5-Valve Soft Seat Threaded Manifold
Care to learn more about our many manifold valve solutions?
Contact our sales and support team today to discover your perfect manifold valve solution!
CALL US
1 (877) 683-2200
EMAIL US
Western Gauge & Instruments (WGI) prides itself on being industry innovators in 5-Valve Soft Seat Threaded Manifold. By continually offering and using the latest in technology and measurement solutions, WGI has a long-standing reputation of providing top quality products using the best of materials and workmanship.
All WGI 5-Valve Soft Seat Threaded Manifold products are manufactured in an ISO 9001 Certified facility and have appropriate Canadian Registration Numbers (CRN) where applicable.

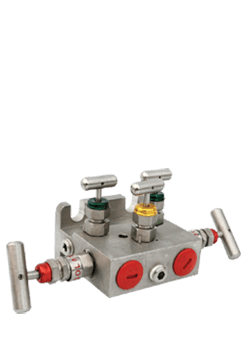

5-Valve Soft Seat Threaded Manifold
Product Description:
For use with differential pressure transmitters or chart recorders. The five manifolds include one remote mounted, two process isolation valves, two equalizing valves and one drain valve on a single block.
Specifications:
Connection
• Instrument and Process – 1/2″ NPT (F) / NPT x Flanged
Maximum Operating Pressure
• 6,000 PSI @ 200°F
Body & Bonnet Material
• ASTM-A-105N, ASME-A-479
Gland Packing
• Adjustable, below stem thread design (PBT), prevent process fluid contact with stem threads. PTFE for temperature below 400°F/ Graphite for temperature above 400°F
Stem
• Close tolerance surface finish, cold rolled threads, ASME-SA-479
Needle Tip
• Self centering hardened and ground ASME SA-479 Type 316 SS
Seat Material
• Delrin
Temperature Rating
• -40°F — 200°F (-40°C — 93°C)
Our WGI 5-Valve Hard Seat Threaded Manifold have the following Product Specifications and Cross Reference Chart:
| SPECIFICATIONS | |
|---|---|
| Connection | Instrument and Process – 1/2″ NPT (F) / NPT x Flanged |
| Maximum Operating Pressure | 6,000 PSI @ 200°F |
| Body & Bonnet Material | ASTM-A-105N, ASME-A-479 |
| Gland Packing | Adjustable, below stem thread design (PBT), prevent process fluid contact with stem threads. PTFE for temperature below 500°F/ Graphite for temperature above 400°F |
| Stem | Close tolerance surface finish, cold rolled threads, ASME-SA-479 |
| Needle Tip | Self centering hardened and ground ASME SA-479 Type 316 SS |
| Seat Material | Delrin |
| Temperature Rating | -40°F — 200°F (-40°C — 93°C) |
| CROSS REFERENCE CHART | ||
|---|---|---|
| Part Number | Material | Ends |
| WM55514 | CS NACE | NPT x NPT |
| WM55314 | 316 SS | NPT x NPT |
| WM55514FN | CS NACE | NPT x Flanged |
| WM55314FN | 316 SS | NPT x Flanged |
